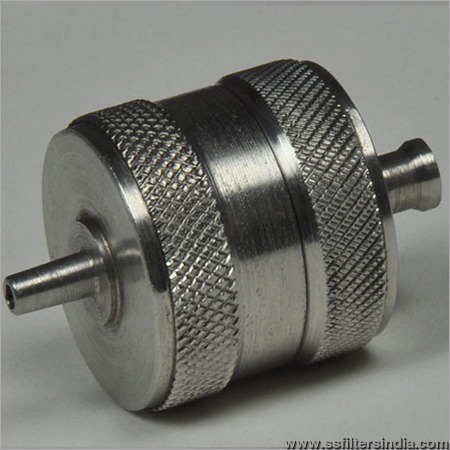

SS Syringe Filter Holder 25 and 13 mm

SS Syringe Filter Holder 25 and 13 mm
SS Syringe Filter Holder 25 and 13 mm
Product Code : 35
Product Description
Stainless steel pressure filter holders with reservoirs are utilized for pilot scale production works, where filtration of approximately 1 to 150 litres of liquid may be needed at a time. In general, for smaller batches of 1 to 10 litres, a 47mm / 90 mm dia plate is used; for 10 to 20 litres, a 142mm dia plate is utilized, and for larger batches, a 293 mm dia plate is effective.

Features & Benefits:
  • Excellent filtration system, good for pilot scale production and R&D work
  • Separate ports for adding sample & pressurizing reservoir
  • Membrane sealed by tri clover clamp
  • Easy membrane filter change
  • Holder for minimized resistance and maximized flow rate
  • Available with support screen for accessory back pressure, suited for intermittent fill operations
Product Specifications:


S.No

Model

Type Stainless steel

Filtration area cm2

Capacity
of reservoir

Connections

1

SSPFH 47

SS 304/ 316

13.5 cm2

200 ml

¼” BSP

2

SSPFH 90

SS 304/ 316

55 cm2

750 ml

Inlet ¼” BSP
Outlet ¼” BSP

3

SSPFH 142

SS 304/ 316

145 cm2

1.5 litres

Inlet ¼” BSP
Outlet ¼” BSP

4

SSPFH 293

SS 304/ 316

650 cm2

4-5 litres

Inlet ¼” BSP
Outlet ¼” BSP


  • Max. Pressure differential: 7 Kg/cm2 (100 psi)
  • Ball valves can be given for all sizes
  • Hose barb adapters, pressure relief valve supplied
Applications:
  • Filter small batches of liquids, without any dedicated pressure dispensing vessel
  • Sterilize & ultra clean
  • Perform studies of flow decay for pilot studies
