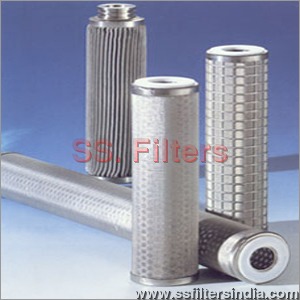

SS Pleated Filter Cartridge

SS Pleated Filter Cartridge
SS Pleated Filter Cartridge
Product Code : 06
Brand Name : SS FILTERS
Product Description

With the assistance of our dexterous and skilled teammates, we are able to manufacture and export a wide stock of SS Pleated Filter Cartridge. Our cartridges are considered as the ideal choice for high viscosity applications with operating temperature of up to 250 degree C & above. These dust filtration cartridges retain high efficiency due to their excellent and fine dirt holding capacity. The complete stock of SS Pleated Filter Cartridge is available for our customers at most competitive prices.

SS Pleated filter cartridges are the optimum option for high viscosity & high temperature(250°C & above) applications. MOC is SS 316 or SS 304 or SS 316L forged. They render exceptional dependability for important usages and have superior dirt keeping ability. The cartridges are made for reusable and cleanable usages so as to remove regular cartridge alteration out.

FEATURES & BENEFITS

  • Superior chemical compatibility
  • 100% Stainless steel
  • High dirt holding capacity
  • Excellent mechanical strength
  • High Thermal tolerance

PRODUCT SPECIFICATIONS

Micron Rating

1, 5, 10, 20, 40 µ

MOC

SS316L / SS 316/ SS 304

Core, End cap, support cage

SS316L / SS 316/ SS304

Length

10” , 20”,  30”,  40”

Inner dia

Approx 28mm or customer specification

Outer dia

63mm, 70mm, 80mm

O-ring material

EPDM ,Buna-N, Silicone, Viton

Effective Surface area

7.5 Sq. feet (0.65sqm) per 10” cartridge element

Max. Operating Temperature

Up to 250 °C

Sterilization
Autoclave
Hot water

121°C, 30min
80C°, 30min

CONSTRUCTION:

  • End  Caps: SS 316/ SS 316L
  • ‘O’ Ring/ Gaskets: Silicone/ EPDM/ Viton
  • Filter media: SS 316L

CONFIGURATION:

  • Code 7S (226- double ‘O’ Ring / fin)
  • 1” BSP threaded, other end closed
  • Double open end- DOE

APPLICATIONS:

  • Steam filtration
  • Corrosive gas & liquid filtration
  • Solid catalyst recovery
  • Beverage industry
  • Filtration of petrochemical products
  • Filtration of slurry oil
  • Vent applications
  • High temperature gas filtration
  • Fluidization
  • Chemical reagents
  • Highly viscous fluids
  • Sparging
