Simplex Filter Simplex Basket Strainer

Simplex Filter Simplex Basket Strainer
Simplex Filter Simplex Basket Strainer
Product Code : 31
Product Description
Simplex strainers, filters offer a cost effective & simple way to separate particle impurities from fluid system. The strainers can be designed in any shape / size, and in a broad range of material to meet industrial specifications. These filters are accessible with cartridge strainers and basket type strainers, having desired micron ratings. Also, the design with cartridge filter offers advantage of integrating back flushing system.

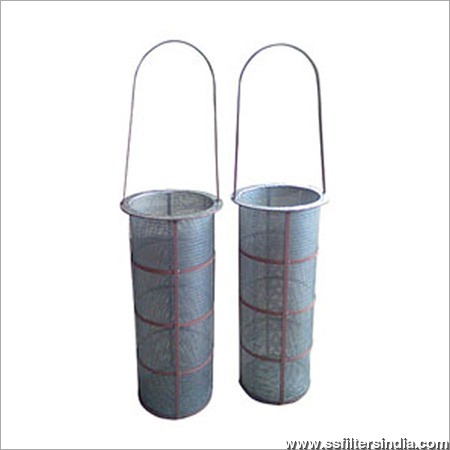

The basket strainers have top removal of the filter screen. The screen has a basket form with a lifting handle, so that all particulates acquired & retained by the screen are easily removed for disposal. They are supposed for applications where a large amount of solid particulate is expected, and where there is frequent clean out. Simplex basket & cartridge strainers range in 3/8” to 24” size. They may be socket welded, threaded, or have flange end connections.

Large basket size can be organized as per the requirement. It holds enough solids for the requisite time between clean outs. For better flow rate and micron ratings, multiple baskets can also be incorporated. For further betterment in the micron rating, the baskets are replaced by large surface area cartridges.

Features & Benefits:
  • Drain connections for basket chambers
  • Easy to clean - lifting handle for top removal of the screen
  • Long-lasting service
  • Size range: from 3/8” to 24”
  • Stainless steel construction for ruggedness and excellent corrosion protection
Product Specifications:

MOC, Body
SS 304

SS 304/ SS 316/ Carbon steel

Filter, MOC

SS 316 mesh with supported SS perforated plate

Operating Pressure Test Pressure

2-5 bar
6 bar

Operating Temp

10 to 200 degrees C

  • Chemicals & Petrochemicals: Solutions, solvents, chemical filtration, bases & acids
  • Food & Beverage: bottled water, flavors, beers, wines, polishing & clarification
  • Health Care & Pharmaceuticals: oral medicines, serum, membrane filtration & opthalmics
  • Paints & Coatings: paints, coatings
  • Industrial processes: removal of carbon, clean water
  • Industrial water treatment
  • Electronics: photo resists, high purity water
  • Cosmetics: creams, lotions, essential oils & mouthwashes
