47Mm Vacuum Filter Unit (Glass)

47Mm Vacuum Filter Unit (Glass)
47Mm Vacuum Filter Unit (Glass)
Product Code : 29
Product Description

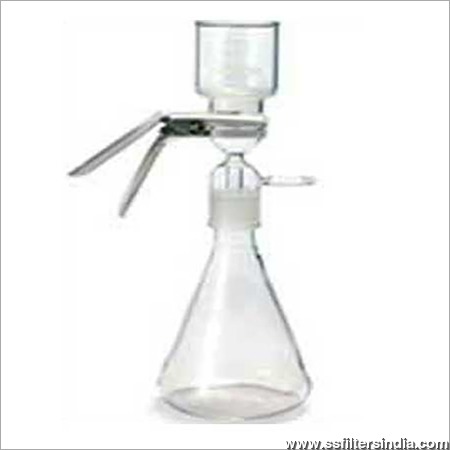

47Mm Vacuum Filter Unit (Glass)

SS Filters, an ISO 9001:2008 certified company brings to the market 47mm vacuum filter unit, ideal to be used for HPLC and filtration of particulate & microbiological contamination. The glass filter holders made from Borosil glass is also used in laboratories for analysis of small to medium volumes of liquid.

It is composed of:
  • A graduated glass funnel with capacity ranging from 300ml to 1000ml
  • A filtering flask with a capacity ranging from  300ml-2 liter
  • Sintered and even glass support for membrane filter
  • An anodized Aluminum clamp
  • A silicon funnel cover with a central hole

Procedure:

This filter holder made of glass filters liquid under vacuum. The sidearm of the flask has a utility to attach a vacuum hose of specific size. A funnel is inserted into the neck of the flask by making use of a rubber stopper joint. This funnel will contain the liquid to be filtered. The next step is to use an anodized clamp for clamping the funnel & the sintered glass support (containing the filter paper). The vacuum is then applied to filter down the liquid contained in the funnel down into the conical flask.
