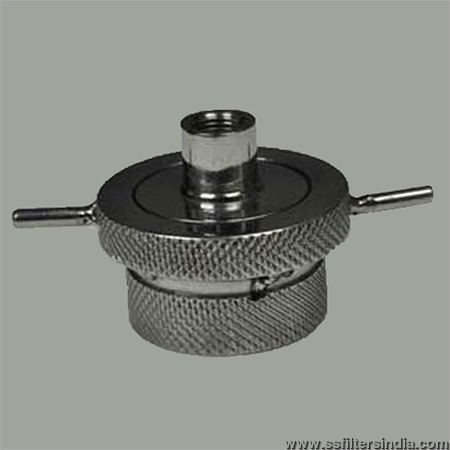

47 Mm Pressure Filter Holder

47 Mm Pressure Filter Holder
47 Mm Pressure Filter Holder
Product Code : 26
Product Description

47 Mm Pressure Filter Holder

Stainless steel 47 mm Filter holder is developed for intense cleansing or sterilizing of liquids or gases under low or high pressure .The liquid conducts filtration via a 47mm disc filter of suitable pore size by flowing it through pressure pump. Gas can be straightaway flowed through inlet. The holders can be strongly heated with the membrane putted. A prefilter located upstream of the membrane filter will resist early clogging when processing viscous fluids.

Filter holder consists of:

  • Filter support screen. .
  • Holder Base
  • Top Cap.
  • Locking ring with 2 arms.
  • Filter sealing Silicon O-ring.

FEATURES:

  • Stainless screen support filter in both direction of flow thus preventing filter damage if reverse flow or pressure surges occur.
  • Female threaded locking nuts designed to allow filter changes without removing holder from the systems.
  • Silicon O-Ring compatible with many aggressive liquids & gases.
  • Unit may be operated up to 100 Kg/cm2
  • Top cap specifically developed at 45˚ angle along the edge so that silicon ‘O’ ring is held tightly below to enable leak-free filtration.

SPECIFICATIONS:

MOC                 :   SS 316

Filter Size          :   47mm dia

Prefilter size      :   42 mm dia

Filtration area    :   12.5 cm2

Pressure             :    3.5 Kg/cm2 differential to
10Kg/ cm2 differential

Connections      :    Inlet ¼ “  NPTF
Out let ¼ “NPTM

Dimension         :    Dia 65mm, length 50 mm

APPLICATION:-

  • Sterilizing or ultra cleaning of liquids or gases under high / low pressure
  • 47 mm Holder can be used for in line microbiological sampling.
  • Can be installed for point of use filtration on filling machines.
